1

Color = SrcColor * SrcBlend + DestColor * DestBlend

1

Color = (Rs * S1 + Rd * D1, Gs * S2 + Gd * D2, Bs * S3 + Bd * D3, As * S4 + Ad * D4)

1
2
3
4
5
6

// IDirect3DDevice9* _d3d_device;

// set alpha blend for source color

 _d3d_device->SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);// set alpha blend for dest color
  _d3d_device->SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20

//Defines the supported blend mode.
typedef enum D3DBLEND
{
    D3DBLEND_ZERO = 1,
    D3DBLEND_ONE = 2,
    D3DBLEND_SRCCOLOR = 3,
    D3DBLEND_INVSRCCOLOR = 4,
    D3DBLEND_SRCALPHA = 5,
    D3DBLEND_INVSRCALPHA = 6,
    D3DBLEND_DESTALPHA = 7,
    D3DBLEND_INVDESTALPHA = 8,
    D3DBLEND_DESTCOLOR = 9,
    D3DBLEND_INVDESTCOLOR = 10,
    D3DBLEND_SRCALPHASAT = 11,
    D3DBLEND_BOTHSRCALPHA = 12,
    D3DBLEND_BOTHINVSRCALPHA = 13,
    D3DBLEND_BLENDFACTOR = 14,
    D3DBLEND_INVBLENDFACTOR = 15,
    D3DBLEND_FORCE_DWORD = 0x7fffffff,
} D3DBLEND, *LPD3DBLEND;

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

/*************************************************************************************
 [Include File]

 PURPOSE:
    Define for alpha blend.
*************************************************************************************/

#ifndef ALPHA_BLEND_H
#define ALPHA_BLEND_H

struct CUSTOM_VERTEX
{
    float x, y, z;
    float nx, ny, nz;
};

#define CUSTOM_VERTEX_FVF   (D3DFVF_XYZ | D3DFVF_NORMAL)

class ALPHA_BLEND
{
private:
    IDirect3D9* _d3d;
    IDirect3DDevice9* _d3d_device;
    IDirect3DVertexBuffer9* _vertex_buffer1;
    IDirect3DVertexBuffer9* _vertex_buffer2;

public:
    ALPHA_BLEND();
    ~ALPHA_BLEND();

    bool Create_D3D_Device(HWND hwnd, bool full_screen = true);
    bool Init_Vertex_Buffer1();
    bool Init_Vertex_Buffer2();
    void Compute_Triangle_Normal(D3DXVECTOR3& v1, D3DXVECTOR3& v2, D3DXVECTOR3& v3, D3DVECTOR& normal);
    void Set_Camera();
    void Set_Point_Light();
    void Set_Object_Material(D3DCOLORVALUE& dif, D3DCOLORVALUE& amb, D3DCOLORVALUE& spe,
                             D3DCOLORVALUE& emi, float power);
    void Render();
    void Release_COM_Object();
};

#endif

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387

/*************************************************************************************
 [Implement File]

 PURPOSE:
    Define for alpha blend.
*************************************************************************************/

#include "GE_COMMON.h"
#include "AlphaBlend.h"

//------------------------------------------------------------------------------------
// Constructor, initialize all pointer with NULL.
//------------------------------------------------------------------------------------
ALPHA_BLEND::ALPHA_BLEND()
{
    _d3d            = NULL;
    _d3d_device     = NULL;
    _vertex_buffer1 = NULL;
    _vertex_buffer2 = NULL;
}

//------------------------------------------------------------------------------------
// Destructor, release all COM object.
//------------------------------------------------------------------------------------
ALPHA_BLEND::~ALPHA_BLEND()
{
    Release_COM_Object();
}

//------------------------------------------------------------------------------------
// Create direct3D interface and direct3D device.
//------------------------------------------------------------------------------------
bool ALPHA_BLEND::Create_D3D_Device(HWND hwnd, bool full_screen)
{
    // Create a IDirect3D9 object and returns an interace to it.
    _d3d = Direct3DCreate9(D3D_SDK_VERSION);
    if(_d3d == NULL)
        return false;

    // retrieve adapter capability
    D3DCAPS9 d3d_caps;
    _d3d->GetDeviceCaps(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, &d3d_caps);

         bool hardware_process_enable = (d3d_caps.DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT ? true : false);

    // Retrieves the current display mode of the adapter.
    D3DDISPLAYMODE display_mode;
    if(FAILED(_d3d->GetAdapterDisplayMode(D3DADAPTER_DEFAULT, &display_mode)))
        return false;

    // set present parameter for direct3D device
    D3DPRESENT_PARAMETERS present_param;

    ZeroMemory(&present_param, sizeof(present_param));

    present_param.BackBufferWidth      = WINDOW_WIDTH;
    present_param.BackBufferHeight     = WINDOW_HEIGHT;
    present_param.BackBufferFormat     = display_mode.Format;
    present_param.BackBufferCount      = 1;
    present_param.hDeviceWindow        = hwnd;
    present_param.Windowed             = !full_screen;
    present_param.SwapEffect           = D3DSWAPEFFECT_FLIP;
    present_param.PresentationInterval = D3DPRESENT_INTERVAL_DEFAULT;

    // Creates a device to represent the display adapter.
    DWORD behavior_flags;

    behavior_flags = hardware_process_enable ?
 D3DCREATE_HARDWARE_VERTEXPROCESSING : D3DCREATE_SOFTWARE_VERTEXPROCESSING;

    if(FAILED(_d3d->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, hwnd, behavior_flags,
                                 &present_param, &_d3d_device)))
    {
        return false;
    }

         // create successfully
    return true;
}

//------------------------------------------------------------------------------------
// Initialize vertex buffer for cone.
//------------------------------------------------------------------------------------
bool ALPHA_BLEND::Init_Vertex_Buffer1()
{
    CUSTOM_VERTEX custom_vertex[12];

         D3DXVECTOR3 v[] =
    {
        D3DXVECTOR3(5.0f, 6.0f, 5.0f),    // left triangle
        D3DXVECTOR3(6.0f, 0.0f, 3.0f),
        D3DXVECTOR3(1.0f, 0.0f, 7.0f),
        D3DXVECTOR3(5.0f, 6.0f, 5.0f),    // right triangle
        D3DXVECTOR3(10.0f, 0.0f, 8.0f),
        D3DXVECTOR3(6.0f, 0.0f, 3.0f),
        D3DXVECTOR3(5.0f, 6.0f, 5.0f),    // back triangle
        D3DXVECTOR3(1.0f, 0.0f, 7.0f),
        D3DXVECTOR3(10.0f, 0.0f, 8.0f),
        D3DXVECTOR3(1.0f, 0.0f, 7.0f),    // bottom triangle
        D3DXVECTOR3(6.0f, 0.0f, 3.0f),
        D3DXVECTOR3(10.0f, 0.0f, 8.0f)
    };

    D3DVECTOR normal;

    // compute all triangle normal
    for(int i = 0; i < 12; i += 3)
    {
        // compute current triangle's normal
        Compute_Triangle_Normal(v[i], v[i+1], v[i+2], normal);

        // assign current vertex coordinate and current triangle normal to custom vertex array
        for(int j = 0; j < 3; j++)
        {
            int k = i + j;

            custom_vertex[k].x  = v[k].x;
            custom_vertex[k].y  = v[k].y;
            custom_vertex[k].z  = v[k].z;
            custom_vertex[k].nx = normal.x;
            custom_vertex[k].ny = normal.y;
            custom_vertex[k].nz = normal.z;
        }
    }

    BYTE* vertex_data;

    // create vertex buffer
    if(FAILED(_d3d_device->CreateVertexBuffer(12 * sizeof(CUSTOM_VERTEX), 0, CUSTOM_VERTEX_FVF,
                            D3DPOOL_DEFAULT, &_vertex_buffer1, NULL)))
    {
        return false;
    }

    // get data pointer to vertex buffer
    if(FAILED(_vertex_buffer1->Lock(0, 0, (void **) &vertex_data, 0)))
        return false;

    // copy custom vertex data into vertex buffer
    memcpy(vertex_data, custom_vertex, sizeof(custom_vertex));

    // unlock vertex buffer
    _vertex_buffer1->Unlock();

    return true;
}

//------------------------------------------------------------------------------------
// Initialize vertex buffer for cone.
//------------------------------------------------------------------------------------
bool ALPHA_BLEND::Init_Vertex_Buffer2()
{
    CUSTOM_VERTEX custom_vertex[12];

    float add = 1.3f;

         D3DXVECTOR3 v[] =
    {
        D3DXVECTOR3(5.0f + add, 6.0f + add, 5.0f + add),    // left triangle
        D3DXVECTOR3(6.0f + add, 0.0f + add, 3.0f + add),
        D3DXVECTOR3(1.0f + add, 0.0f + add, 7.0f + add),
        D3DXVECTOR3(5.0f + add, 6.0f + add, 5.0f + add),    // right triangle
        D3DXVECTOR3(10.0f + add, 0.0f + add, 8.0f + add),
        D3DXVECTOR3(6.0f + add, 0.0f + add, 3.0f + add),
        D3DXVECTOR3(5.0f + add, 6.0f + add, 5.0f + add),    // back triangle
        D3DXVECTOR3(1.0f + add, 0.0f + add, 7.0f + add),
        D3DXVECTOR3(10.0f + add, 0.0f + add, 8.0f + add),
        D3DXVECTOR3(1.0f + add, 0.0f + add, 7.0f + add),    // bottom triangle
        D3DXVECTOR3(6.0f + add, 0.0f + add, 3.0f + add),
        D3DXVECTOR3(10.0f + add, 0.0f + add, 8.0f + add)
    };

    D3DVECTOR normal;

    // compute all triangle normal
    for(int i = 0; i < 12; i += 3)
    {
        // compute current triangle's normal
        Compute_Triangle_Normal(v[i], v[i+1], v[i+2], normal);

        // assign current vertex coordinate and current triangle normal to custom vertex array
        for(int j = 0; j < 3; j++)
        {
            int k = i + j;

            custom_vertex[k].x  = v[k].x;
            custom_vertex[k].y  = v[k].y;
            custom_vertex[k].z  = v[k].z;
            custom_vertex[k].nx = normal.x;
            custom_vertex[k].ny = normal.y;
            custom_vertex[k].nz = normal.z;
        }
    }

    BYTE* vertex_data;

    // create vertex buffer
    if(FAILED(_d3d_device->CreateVertexBuffer(12 * sizeof(CUSTOM_VERTEX), 0, CUSTOM_VERTEX_FVF,
                            D3DPOOL_DEFAULT, &_vertex_buffer2, NULL)))
    {
        return false;
    }

    // get data pointer to vertex buffer
    if(FAILED(_vertex_buffer2->Lock(0, 0, (void **) &vertex_data, 0)))
        return false;

    // copy custom vertex data into vertex buffer
    memcpy(vertex_data, custom_vertex, sizeof(custom_vertex));

    // unlock vertex buffer
    _vertex_buffer2->Unlock();

    return true;
}

//------------------------------------------------------------------------------------
// Set camera position.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Set_Camera()
{
    D3DXVECTOR3 eye(-6.0, 1.5, 10.0);
    D3DXVECTOR3 at(6.0, 2.0, 3.0);
    D3DXVECTOR3 up(0.0, 1.0, 0.0);

    D3DXMATRIX view_matrix;

    // Builds a left-handed, look-at matrix.
    D3DXMatrixLookAtLH(&view_matrix, &eye, &at, &up);

    // Sets d3d device view transformation state.
    _d3d_device->SetTransform(D3DTS_VIEW, &view_matrix);

    D3DXMATRIX proj_matrix;

    // Builds a left-handed perspective projection matrix based on a field of view.
    D3DXMatrixPerspectiveFovLH(&proj_matrix, D3DX_PI/2, WINDOW_WIDTH / WINDOW_HEIGHT, 1.0, 1000.0);

         // Sets d3d device projection transformation state.
    _d3d_device->SetTransform(D3DTS_PROJECTION, &proj_matrix);
    // enable automatic normalization of vertex normals
    _d3d_device->SetRenderState(D3DRS_NORMALIZENORMALS, true);
}

//------------------------------------------------------------------------------------
// Set point light.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Set_Point_Light()
{
    D3DLIGHT9 light;

    // clear memory with 0
    ZeroMemory(&light, sizeof(D3DLIGHT9));

    light.Type          = D3DLIGHT_POINT;

    light.Diffuse.r     = 1.0;
    light.Diffuse.g     = 0.0;
    light.Diffuse.b     = 0.0;

    light.Ambient.r     = 0.0;
    light.Ambient.g     = 1.0;
    light.Ambient.b     = 0.0;

    light.Specular.r    = 0.0;
    light.Specular.g    = 0.0;
    light.Specular.b    = 0.0;

         light.Position.x    = 5.0;
    light.Position.y    = 6.0;
    light.Position.z    = -20.0;

    light.Attenuation0  = 1.0;
    light.Attenuation1  = 0.0;
    light.Attenuation2  = 0.0;

    light.Range         = 1000.0;

    // Assigns point lighting properties for this device
    _d3d_device->SetLight(0, &light);
    // enable point light
    _d3d_device->LightEnable(0, TRUE);
    // enable light     _d3d_device->SetRenderState(D3DRS_LIGHTING, TRUE);
    // add ambient light
    _d3d_device->SetRenderState(D3DRS_AMBIENT, D3DCOLOR_XRGB(50, 50, 50));
}

//------------------------------------------------------------------------------------
// Sets the material properties for the device.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Set_Object_Material(D3DCOLORVALUE& dif, D3DCOLORVALUE& amb, D3DCOLORVALUE& spe,
                                       D3DCOLORVALUE& emi, float power)
{
    D3DMATERIAL9 material;

    material.Diffuse  = dif;
    material.Ambient  = amb;
    material.Specular = spe;
    material.Emissive = emi;
    material.Power    = power;

    // Sets the material properties for the device.
    _d3d_device->SetMaterial(&material);
}

//------------------------------------------------------------------------------------
// Compute triangle normal.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Compute_Triangle_Normal(D3DXVECTOR3& v1, D3DXVECTOR3& v2, D3DXVECTOR3& v3, D3DVECTOR& normal)
{
    D3DXVECTOR3 vec1 = v1 - v2;
    D3DXVECTOR3 vec2 = v1 - v3;
    D3DXVECTOR3 normal_vec;

    D3DXVec3Cross(&normal_vec, &vec1, &vec2);
    D3DXVec3Normalize(&normal_vec, &normal_vec);

    normal = (D3DVECTOR) normal_vec;
}

//------------------------------------------------------------------------------------
// Draw cones.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Render()
{
    if(_d3d_device == NULL)
        return;

    // clear surface with black
    _d3d_device->Clear(0, NULL, D3DCLEAR_TARGET, D3DCOLOR_XRGB(0, 0, 0), 1.0, 0);

    // begin scene
    _d3d_device->BeginScene();

    // 1) draw cone 1

    // Binds a vertex buffer to a device data stream.

    _d3d_device->SetStreamSource(0, _vertex_buffer1, 0, sizeof(CUSTOM_VERTEX));

    // Sets the current vertex stream declaration.
    _d3d_device->SetFVF(CUSTOM_VERTEX_FVF);

    // Renders a sequence of nonindexed, geometric primitives of the specified type from the current
    // set of data input streams.
    _d3d_device->DrawPrimitive(D3DPT_TRIANGLELIST, 0, 4);

    // enable alpha-blended transparency
    _d3d_device->SetRenderState(D3DRS_ALPHABLENDENABLE, true);

         // set alpha blend for source cone
    _d3d_device->SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);
    // set alpha blend for dest cone
    _d3d_device->SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);

    // 2) draw cone 2

    // Binds a vertex buffer to a device data stream.

    _d3d_device->SetStreamSource(0, _vertex_buffer2, 0, sizeof(CUSTOM_VERTEX));

    // Sets the current vertex stream declaration.
    _d3d_device->SetFVF(CUSTOM_VERTEX_FVF);

    // draw square
    _d3d_device->DrawPrimitive(D3DPT_TRIANGLELIST, 0, 4);

    // disable alpha blend for d3d device
    _d3d_device->SetRenderState(D3DRS_ALPHABLENDENABLE, false);

    // end scene
    _d3d_device->EndScene();

    // Presents the contents of the next buffer in the sequence of back buffers owned by the device.
    _d3d_device->Present(NULL, NULL, NULL, NULL);
}

//------------------------------------------------------------------------------------
// Release all COM object.
//------------------------------------------------------------------------------------
void ALPHA_BLEND::Release_COM_Object()
{
    Safe_Release(_vertex_buffer1);
    Safe_Release(_vertex_buffer2);
    Safe_Release(_d3d_device);
    Safe_Release(_d3d);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

/*************************************************************************************
 [Implement File]

 PURPOSE:

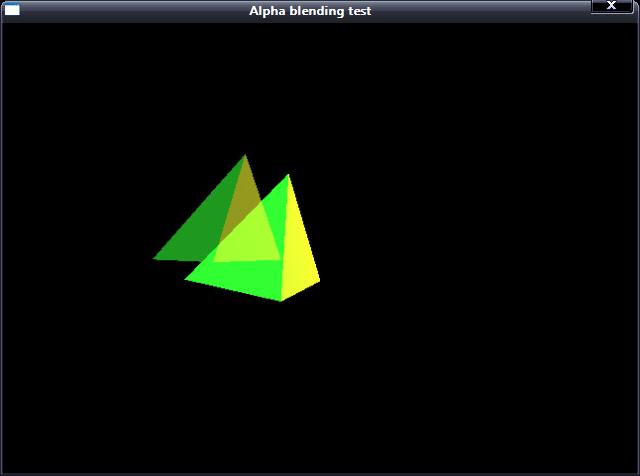

    Test for alpha blending.
*************************************************************************************/

#define DIRECTINPUT_VERSION 0x0800

#include "GE_COMMON.h"
#include "GE_APP.h"
#include "AlphaBlend.h"

#pragma warning(disable : 4305 4996)int WINAPI WinMain(HINSTANCE instance, HINSTANCE, LPSTR cmd_line, int cmd_show)
{
    GE_APP ge_app;
    ALPHA_BLEND alpha_blend;

    MSG msg = {0};// create window
    if(! ge_app.Create_Window("Alpha blending test", instance, cmd_show))        return false;

    HWND hwnd = ge_app.Get_Window_Handle();

    SetWindowPos(hwnd, 0, 0,0,0,0, SWP_NOSIZE);
    SetCursorPos(0, 0);

// Create direct3D interface and direct3D device.
    if(! alpha_blend.Create_D3D_Device(hwnd, false))        return false;// Initialize cone 1 vertex buffer with curstom vertex structure.
    if(! alpha_blend.Init_Vertex_Buffer1())        return false;// Initialize cone 2 vertex buffer with curstom vertex structure.
    if(! alpha_blend.Init_Vertex_Buffer2())        return false;// Set camera position.
    alpha_blend.Set_Camera();

    D3DCOLORVALUE dif = {1.0f, 1.0f, 1.0f, 0.6f};
    D3DCOLORVALUE amb = {1.0f, 1.0f, 1.0f, 0.0f};
    D3DCOLORVALUE spe = {0.0f, 0.0f, 0.0f, 0.0f};
    D3DCOLORVALUE emi = {0.0f, 0.0f, 0.0f, 0.0f};// Sets the material properties for the device.
    alpha_blend.Set_Object_Material(dif, amb, spe, emi, 0);// Set point light.
    alpha_blend.Set_Point_Light();// Draw all cones
    alpha_blend.Render();while(msg.message != WM_QUIT)
    {        if(PeekMessage(&msg, NULL, 0,0 , PM_REMOVE))
        {
            TranslateMessage(&msg);
            DispatchMessage(&msg);
        }
    }

    UnregisterClass(WINDOW_CLASS_NAME, instance);

return true;
}
