PURPOSE:

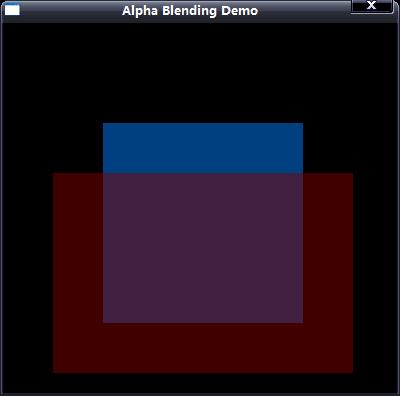

Alpha blending Demo
Required libraries:
D3D9.LIB
***************************************************************************************/
#include <windows.h>
#include <stdio.h>
#include "d3d9.h"
#pragma comment(lib, "d3d9.lib")
#define WINDOW_WIDTH 400
#define WINDOW_HEIGHT 400
#define Safe_Release(p) if((p)) (p)->Release();
// window handles, class and caption text.
HWND g_hwnd;
HINSTANCE g_inst;
static char g_class_name[] = "AlphaClass";
static char g_caption[] = "Alpha Blending Demo";
// the Direct3D and device object
IDirect3D9* g_d3d = NULL;
IDirect3DDevice9* g_d3d_device = NULL;
// The 2D vertex format and descriptor
typedef struct
{
float x, y, z; // 2D coordinates
float rhw; // rhw
D3DCOLOR diffuse; // diffuse color component
} VERTEX;
#define VERTEX_FVF (D3DFVF_XYZRHW | D3DFVF_DIFFUSE)
IDirect3DVertexBuffer9 * g_vertex_buffer = NULL;
IDirect3DTexture9 * g_texture = NULL;
// --------------------------------------------------------------------------------
// Window procedure.
// --------------------------------------------------------------------------------
long WINAPI Window_Proc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
switch (msg)
{
case WM_DESTROY:
PostQuitMessage(0);
return 0;
}
return (long) DefWindowProc(hwnd, msg, wParam, lParam);
}
// --------------------------------------------------------------------------------
// Initialize d3d, d3d device, vertex buffer, texutre.
// --------------------------------------------------------------------------------
BOOL Do_Init()
{
D3DPRESENT_PARAMETERS present_param;
D3DDISPLAYMODE display_mode;
BYTE * vertex_ptr;
// initialize vertex data
VERTEX verts[] = {
{ 100.0f, 100.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(0, 64, 128, 255) },
{ 300.0f, 100.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(0, 64, 128, 255) },
{ 100.0f, 300.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(0, 64, 128, 255) },
{ 300.0f, 300.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(0, 64, 128, 255) },
{ 50.0f, 150.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(128, 0, 0, 128) },
{ 350.0f, 150.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(128, 0, 0, 128) },
{ 50.0f, 350.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(128, 0, 0, 128) },
{ 350.0f, 350.0f, 1.0f, 1.0f, D3DCOLOR_RGBA(128, 0, 0, 128) }
};
// do a windowed mode initialization of Direct3D
if ((g_d3d = Direct3DCreate9(D3D_SDK_VERSION)) == NULL)
return FALSE;
// retrieves the current display mode of the adapter
if (FAILED(g_d3d->GetAdapterDisplayMode(D3DADAPTER_DEFAULT, &display_mode)))
return FALSE;
ZeroMemory(&present_param, sizeof (present_param));
// initialize d3d presentation parameter
present_param.Windowed = TRUE;
present_param.SwapEffect = D3DSWAPEFFECT_DISCARD;
present_param.BackBufferFormat = display_mode.Format;
// creates a device to represent the display adapter
if (FAILED(g_d3d->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, g_hwnd,
D3DCREATE_SOFTWARE_VERTEXPROCESSING, &present_param, &g_d3d_device)))
return FALSE;
// create the vertex buffer and set data
g_d3d_device->CreateVertexBuffer(sizeof(VERTEX) * 8, 0, VERTEX_FVF, D3DPOOL_DEFAULT, &g_vertex_buffer, NULL);
// locks a range of vertex data and obtains a pointer to the vertex buffer memory
g_vertex_buffer->Lock(0, 0, (void **)&vertex_ptr, 0);
memcpy(vertex_ptr, verts, sizeof (verts));
// unlocks vertex data
g_vertex_buffer->Unlock();
return TRUE;
}
// --------------------------------------------------------------------------------
// Release all d3d resource.
// --------------------------------------------------------------------------------
BOOL Do_Shutdown()
{
Safe_Release(g_vertex_buffer);
Safe_Release(g_d3d_device);
Safe_Release(g_d3d);
return TRUE;
}
// --------------------------------------------------------------------------------
// Render a frame.
// --------------------------------------------------------------------------------
BOOL Do_Frame()
{
// clear device back buffer
g_d3d_device->Clear(0, NULL, D3DCLEAR_TARGET, D3DCOLOR_RGBA(0, 0, 0, 255), 1.0f, 0);
// Begin scene
if (SUCCEEDED(g_d3d_device->BeginScene()))
{
// set the vertex stream, shader, and texture.
// binds a vertex buffer to a device data stream
g_d3d_device->SetStreamSource( 0, g_vertex_buffer, 0, sizeof (VERTEX));
// set the current vertex stream declation
g_d3d_device->SetFVF(VERTEX_FVF);
// assigns a texture to a stage for a device
g_d3d_device->SetTexture( 0, g_texture);
// disable alpha blending and draw 2 polygons
g_d3d_device->SetRenderState(D3DRS_ALPHABLENDENABLE, FALSE);
g_d3d_device->DrawPrimitive(D3DPT_TRIANGLESTRIP, 0, 2);
// enable alpha blending and draw 2 polygons
g_d3d_device->SetRenderState(D3DRS_ALPHABLENDENABLE, TRUE);
g_d3d_device->SetRenderState(D3DRS_SRCBLEND, D3DBLEND_SRCALPHA);
g_d3d_device->SetRenderState(D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA);
g_d3d_device->DrawPrimitive(D3DPT_TRIANGLESTRIP, 4, 2);
// end the scene
g_d3d_device->EndScene();
}
// present the contents of the next buffer in the sequence of back buffers owned by the device
g_d3d_device->Present(NULL, NULL, NULL, NULL);
return TRUE;
}
// --------------------------------------------------------------------------------
// Main function, routine entry.
// --------------------------------------------------------------------------------
int WINAPI WinMain(HINSTANCE inst, HINSTANCE, LPSTR cmd_line, int cmd_show)
{
WNDCLASSEX win_class;
MSG msg;
g_inst = inst;
// create window class and register it
win_class.cbSize = sizeof (win_class);
win_class.style = CS_CLASSDC;
win_class.lpfnWndProc = Window_Proc;
win_class.cbClsExtra = 0;
win_class.cbWndExtra = 0;
win_class.hInstance = inst;
win_class.hIcon = LoadIcon(NULL, IDI_APPLICATION);
win_class.hCursor = LoadCursor(NULL, IDC_ARROW);
win_class.hbrBackground = NULL;
win_class.lpszMenuName = NULL;
win_class.lpszClassName = g_class_name;
win_class.hIconSm = LoadIcon(NULL, IDI_APPLICATION);
if (! RegisterClassEx(&win_class))
return FALSE;
// create the main window
g_hwnd = CreateWindow(g_class_name, g_caption, WS_CAPTION | WS_SYSMENU, 0, 0,
WINDOW_WIDTH, WINDOW_HEIGHT, NULL, NULL, inst, NULL);
if (g_hwnd == NULL)
return FALSE;
ShowWindow(g_hwnd, SW_NORMAL);
UpdateWindow(g_hwnd);
// initialize game
if (Do_Init() == FALSE)
return FALSE;
// start message pump, waiting for signal to quit.
ZeroMemory(&msg, sizeof (MSG));
while (msg.message != WM_QUIT)
{
if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
{
TranslateMessage(&msg);
DispatchMessage(&msg);
}
// draw a frame
if (Do_Frame() == FALSE)
break ;
}
// run shutdown function
Do_Shutdown();
UnregisterClass(g_class_name, inst);
return (int) msg.wParam;
}
|
